The Anaconda wave energy converter, which is shown as an artist’s impression in Figure 1, is a novel concept for wave energy conversion invented by Rod Rainey and Francis Farley and further developed by the licensed manufacturers Checkmate SeaEnergy Ltd. The system essentially consists of a rubber tube filled with water which is placed in the sea. Both ends of this rubber tube are sealed and it is anchored with its head to the waves. It is squeezed or enlarged locally by waves causing pressure variations along its length.

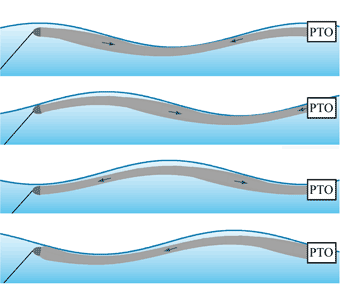

The Anaconda concept is shown schematically in Figure 2. A running bulge wave is generated by squeezing the water-filled rubber tube. The bulge wave travels at a speed that is determined by the geometry and material properties of the tube. Anaconda is designed so that its bulge wave speed is close to the speed of the external water waves above. In this resonance condition the bulges grow as they travel along the tube, gathering wave energy. Inside the tube, the bulge waves are accompanied by a periodically reversing flow. Localised squeezing and enlarging effects permit energy to be extracted indirectly with a Power Take-Off (PTO). One way of extracting power from Anaconda is to use a pair of duck-bill valves to convert this power into a rectified flow past a turbine between high and low pressure reservoirs. The animation below shows an impression of the Anaconda wave energy converter at full scale.
View the animation of the Anaconda wave energy converter (file type: wmv; file size: 8973 KB; Animation provided by Checkmate SeaEnergy Ltd).
Scale Model Testing and Numerical Simulations
The Sustainable Energy Research Group is involved in the investigation of Anaconda and different modifications of its original design within an EPSRC funded project. The emphasis lies in the development of a better understanding of the hydrodynamics of the device and validated numerical simulations. The numerical simulations conducted by the Fluid Structure Interactions Research Group of the School of Engineering Science include the software MATTHEW for the hydrodynamics and ABAQUS Unified Finite Element Analysis for the structural analysis.

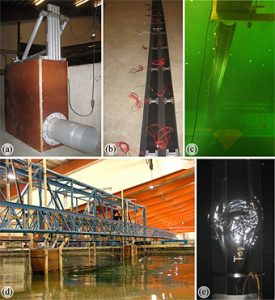

The most comprehensive Anaconda test series conducted by SERG was supported by HYDRALAB-III and carried out at the Danish Hydraulic Institute (DHI) in a wave basin (length × width × depth = 30 m × 20 m × 3 m). The diameter scale of the 0.25 m model tube was about 1:30. A simplified set-up was designed to provide well defined initial and boundary conditions for numerical simulations and to compare the measured data with theoretical predictions. Figure 3 shows some impressions of the experiments at the DHI.

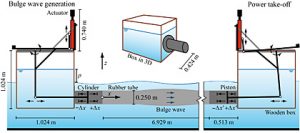

Figure 4 shows the test set-up at the DHI. The bulge waves were artificially generated in still water and by external waves. The bulge wave generator consisted of an actuator moving a piston in a cylinder (Fig. 3(a)). The bulge waves propagated in the rubber tube and lost energy due to radiated waves (Fig. 3(e)) and hysteresis losses in the rubber. The system to absorb the bulge waves (PTO) on the tube end was identical to the system used for the generation. Wooden boxes allowed the rubber tube to act under an overpressure to avoid decompression of the rubber material in a bulge wave trough.
Future research activities within the EPSRC project will include measurements in both regular and irregular waves in different wave tanks as well as investigation of Anaconda in extreme waves. Numerical simulations are under further development. The most important features to investigate are the internal tube pressures, bulge wave speed, tube displacements (movement analysis), radiated waves, mooring forces and absorbed power.
